Pure sine wave inverter 300W with toroidal transformer

FOB Reference Price:Get Latest Price
$138.00 - $150.00 / Piece | 1 Piece/Pieces (Min. Order)
Solar Power (W):
300W
System Type:
Off-Grid Solar System
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 14 Negotiable
Customization:
Customized logo (Min. Order: 5 Pieces)
Customized packaging (Min. Order: 10 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Deming
Model Number:
DM-STI-300W
Application:
HOME
Work Time (h):
24hours
Nominal Battery Voltage:
12/24Vdc
Certificate:
CE
Input Voltage Range:
12V(10.5-16Vdc)/24V(21-32Vdc)
Output Voltage:
AC220V/230V±3%
Maximum shor time power(10s):
450W
Instantaneous Surge Power(1.5s):
600W
Surge Power:
960W
Maximum efficiency:
≥91%
Dimension(mm):
315*166*101mm
Net Weight(kg):
5.3kg
Specification:
Normal
Output Voltage (V):
220V/230V single phase
Load Power (W):
300W
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
325*180*110mm/carton case, 6.3kg/case
Port
Qingdao, Tianjin, Shanghai, Ningbo, ShenZhen, Guangzhou
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 14 To be negotiated

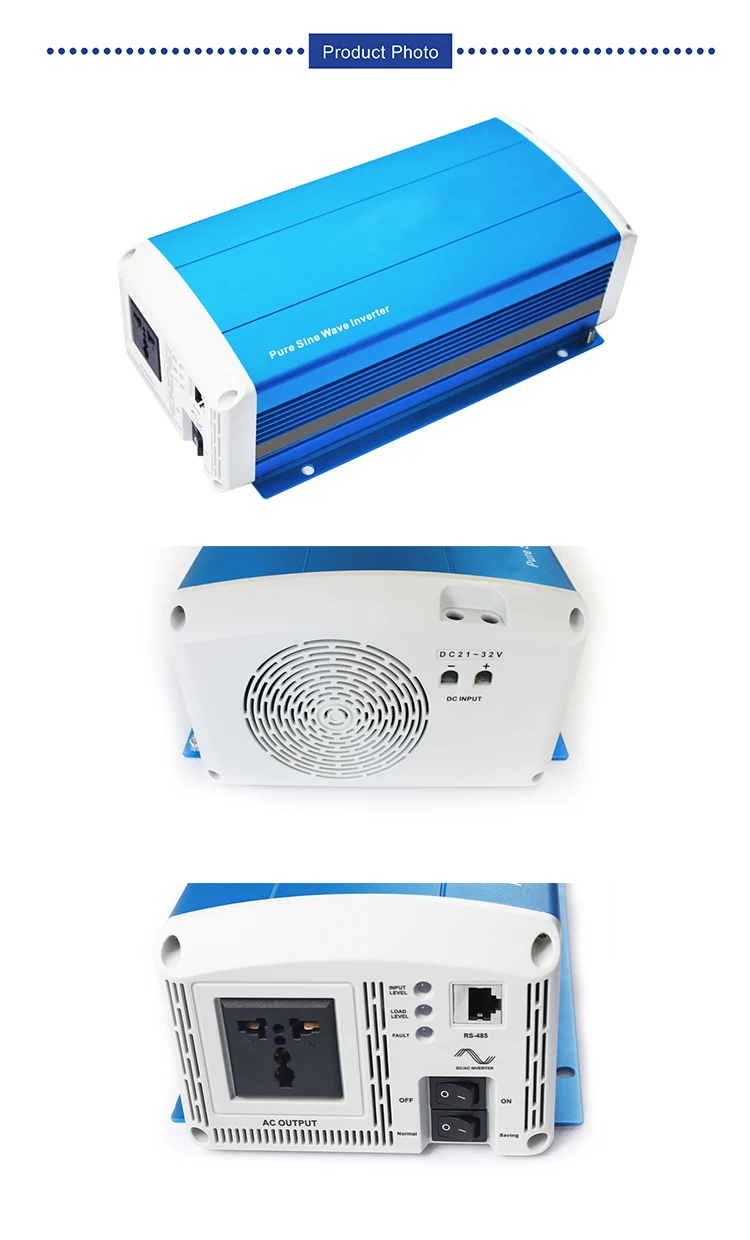

Pure Sine Wave Inverter  STI series
STI series is a sine wave power frequency inverter which can convert 12V or 24V DC to 220V AC 50Hz based on full digital and intelligent design. It features high reliability, high efficiency, concise outline, small volume, full protection functions, easy installation and operation. The inverter can be applied in many fields especially for solar photovoltaic power system.

Features:

1. Complete isolation-type inverter technology, noiseless output
2. Adoption of advanced SPWM technology, pure sine wave output
3. Dynamic current loop control technology to ensure inverter reliable operation
4. Wide DC input voltage range
5. Excellent EMC design
6. Low output harmonic distortion(THD3%)
7. LED indicators for input voltage range, load power range, normal output & failure state
8Optional energy saving mode
9. Extensive protections: reverse polarity, short-circuit, overload, under/over input voltage, over-temperature, and          inverter’s inner fault identification protections
10.Wide working temperature range (industrial level)
11.Continuous operation at full power


Electronic protection:

1. Output Short Circuit                        2.Input low voltage                 3.Input over voltage
4. Inverter abnormal protection             5.Overload                            6.Overheating protection


Details:





Output  socket  (option) :


STI  Pure Sine Wave Inverter Technical Data Sheet 300W


Model

DM-STI200-12

DM-STI200-24

DM-STI300-12

DM-STI300-24

Nominal Battery Voltage

12V

24V

12V

24V

Input Voltage Range

10.5 ~16Vdc

21 ~32Vdc

10.5 ~16Vdc

21 ~32Vdc

Consumption (on) no Load

≤5W

≤6W

≤5W

≤7.5W

Output Voltage

110Vac,120Vac,220Vac,230Vac±3%

Continuous Power

200VA

300VA

Power 10 sec

300VA

450VA

Power 1.5 sec

400VA

600VA

Output Mode

Single Phase

Output waveform

Pure sine wave

Frequency

50±0.5% Hz

Distortion THD

THD≤ 3%(resistive load )

Efficiency at Rated Power

≥81%

≥85%

≥81%

≥85%

Max. Efficiency

≥88%

≥89%

≥90%

≥91%

Working Temperature

-20~ +50

Storage Temperature

-35~ +70

Humidity

< 95% (N.C.)

Altitude

< 5000m (Rerating to operate according to IEC62040 at a height exceeding 1000 m)

Insulation Resistance

Between DC input terminals and metal case: ≥550MΩ

Between AC output terminals and metal case: ≥550MΩ.

Dielectric Strength

Between DC input terminals and metal case: Test voltage AC1500V, 1 minute

Between AC output terminals and metal case: Test voltage AC1500V, 1 minute

Dimensions(L×W×H)

314.5×166×100.8mm

Installation

200×154mm

Hole Size

8mm

Net Weight

4.5kg

5.3kg






Wave Form:



Efficiency Curve :


                        STI700W24Vdc-220Vac---------Efficiency                                      STI1000W24Vdc-220Vac-------Efficiency


Parts

  Service guarantee

         As our corporate users, you enjoy the following service:

        (1) The machine warranty for free in 2 year;

        (2) Technical support;

        (3) Within 24 hours for respond after receiving notification;

        (4) Cost maintenance forever.

        When you confirm the failure of equipment, please promptly contact us and provide the equipment model and complete description of the problem.



        However, any of the following situation happened, are not included in the warranty:

       (1) Non-permitted by the company, went ahead with repair and damage;

       (2) Install or modify arbitrarily;

       (3) Incorrect operation or use;

       (4) Do not depending on the manual to do cleaning or maintenance;

       (5) Abnormal environment condition exceed the specifications, result in damage;

       (6) The deliberate destruction of man-made;

       (7) Irresistible natural disasters.
