480V 250A Price MPPT Solar Charge Controller For 100KW Off Grid Solar Power System

FOB Reference Price:Get Latest Price
US $3,150-3,525 / Pieces | 1 Piece/Pieces mppt solar charge controller (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Deming
Model Number:
DMSC-480V250A
Application:
Solar System Controller
Rated Voltage:
480V
Maximum Current:
300A
Product name:
Mppt Solar Charge Controller
Battery Group Rated Voltageq:
480Vdc
PV Rated Current:
250A
PV Open Circuit Voltage:
880Vdc
PV Max. Power:
120KW
Input PV road number:
2/3/4/5
Display Mode:
LCD
communication Interface:
RS485/GPRS/WIFI
Certification:
CE/ISO9001
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week mppt solar charge controller
Packaging & Delivery
Packaging Details
one controller/wooden case
600*500*1200mm/140kg
mppt solar charge controller
Port
Tianjin, Qingdao, Shanghai, Ningbo, Guangzhou, Shenzhen
Lead Time :
within 5-7 days after payment received



480V 250A Price MPPT Solar Charge Controller For 100KW Off Grid

Solar Power System

Product Overviews

Functional description

Properties of the solar charge controller

1. Design for off-grid solar power system.

2. Applicable to different kinds of batteries.

3. Modular design with simple structure and easy maintenance.

4. Automatic power control function.

5. LCD display: Solar panel current, solar panel voltage, solar panel power, battery group voltage, charge         current.

6. MODBUS protocol. The problem that the protocol cant be compatible with other devices is solved. It is convenient to do secondary development.

7. Add the protection function of charge module. When batteries are broken or open circuit, inverter power the loads directly via controller, the charge module wont be damaged.

8. Battery protection is added. When there is fault on charge module, disconnect the battery, to prevent the over-charge of battery(high voltage is optional)

9.Perfect protection function: Solar reverse charge protection, Solar reverse connection   protection, Battery reverse connection protection, Battery overcharge protection, Battery over current protection etc ,thus the system has higher reliability.

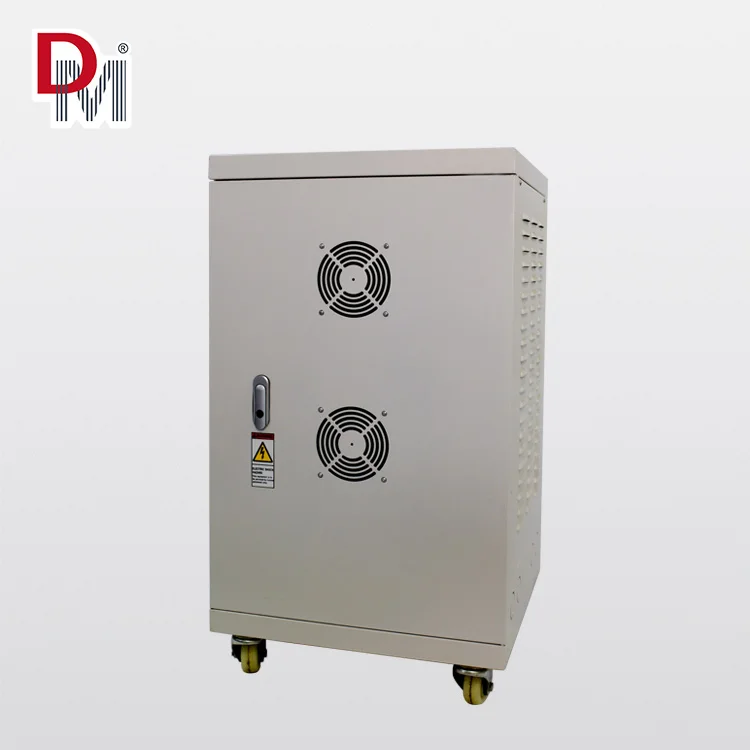

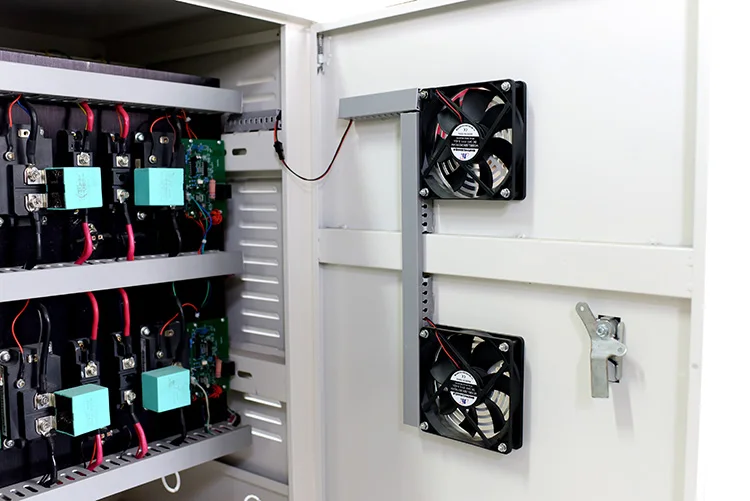

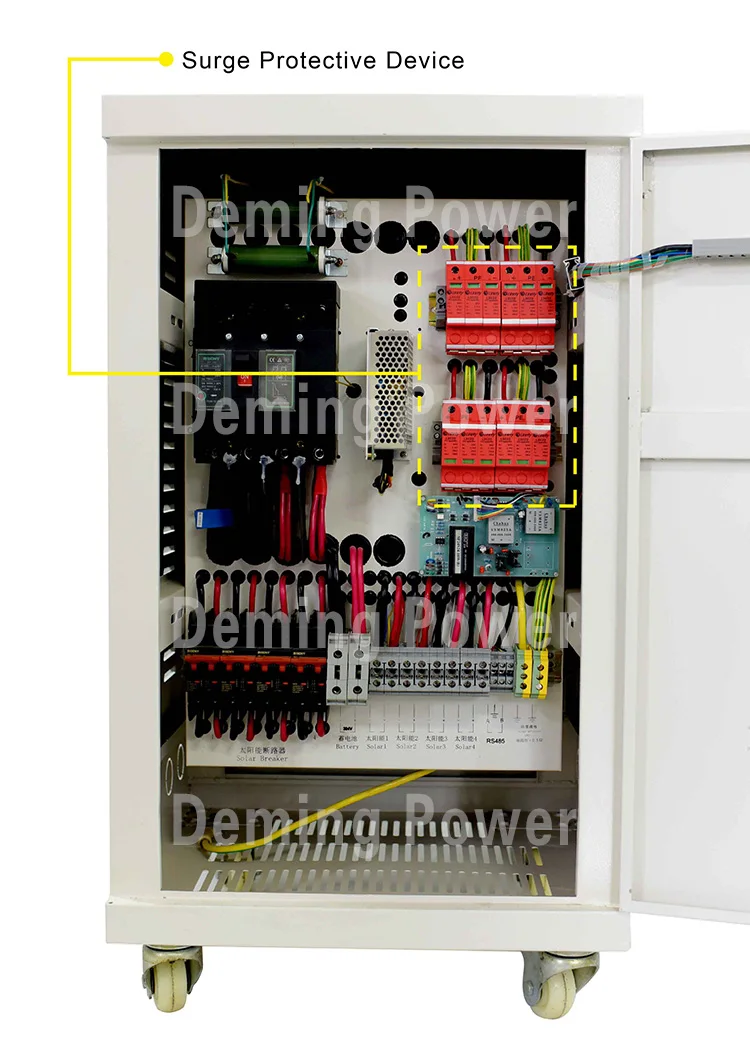

Detailed Images

191(750)2(750)1(750)



    Techncial Data Sheet of 480V 250A Price MPPT Solar Charge Controller For 100KW Off Grid Solar Power             System



Model

480V100A

480V150A

480A200A

480V250A

Battery group rated voltage

480V

480V

480V

480V

PV Max. input (open circuit) voltage

880V

880V

880V

880V

PV Rated current

100A

50A

60A

80A

PV Max. power

48KW

72KW

96KW

120KW

Max/Optimum. PV Array Vmp

696Vdc, a little more or less is okay

Input PV module road number

2

3

4

5

Function

Auto stop charge, auto recharge voltage; Protection: connecting contrary, over current, short circuit, over heat etc.

Display mode

LCD

Display content

solar panel voltage, solar panel current, solar panel power, battery voltage, charge current

Floating Charge Voltage (adjustable)

552V

552V

552V

552V

Stop charge voltage

580V ±1%

580V ±1%

580V ±1%

580V ±1%

Recharge voltage

540V ±1%

540V ±1%

540V ±1%

540V ±1%

Voltage drop between PV and battery

1.5V

Max itself power consumption

100mA-150mA

Work environment temperature

-30-60°C

Relative humidity

<90% No condensation

Applicable altitude

<3000m

Noise (1m)

<40dB

Degree of protection

IP20(Indoor)

Cooling method

Forced air cooling

*Communication interface (optional)

RS485/USB/GPRS/Ethernet

*Temperature compensation(optional)

-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C

Product size

585*585*980

585*585*980

690*590*1300

690*590*1300

Weight

65

65

120

120
