96V 30A/50A/100A/200A Factory Price top Quality Mppt Solar Charge Controller

FOB Reference Price:Get Latest Price
US $715-730 / Pieces | 1 Piece/Pieces mppt solar charge controller (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Deming
Model Number:
DMSC-96V30A/50A/60A/80A/100A/200A
Application:
Solar System Controller
Rated Voltage:
96v
Maximum Current:
30A/50A/60A/80A/100A/200A
Product Name:
Mppt Solar Charge Controller
Battery Group Rated Voltage:
96Vdc
PV Open Circuit Voltage:
500Vdc
PV Max. Power:
19200W
Input PV Module Road Number:
4
Display Mode:
LCD
Floating Charge Voltage:
220Vdc
Stop Charge Voltage:
232Vdc
Recharge Voltage:
216Vdc
Size/Weight:
480*360*170mm/17kg
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week mppt solar charge controller
Packaging & Delivery
Packaging Details
1 pc/wooden case
wooden case size: 770*600*310mm
wooden case weight: 36kg
mppt solar charge controller
Port
QINGDAO, Tianjin, SHANGHAI,NINGBO,GUANGZHOU
Lead Time :
Shipped in 5 days after payment

96V/192V/240V/384V Factory Price top Quality

Mppt Solar Charge Controller

Product Overviews

functional



Properties of the solar charge controller



1. The mppt solar charge controller is designed for off-grid solar power system.



2. The mppt solar charge controller is applicable to different kinds of batteries.



3. Modular design with simple structure and easy maintenance.



4. Automatic power control function.



5. LCD display: Solar panel current, solar panel voltage, solar panel power, battery group voltage, charge current.



6. MODBUS protocol. The problem that the protocol cant be compatible with other devices is solved. It is convenient to do secondary development.



7. Add the protection function of charge module. When batteries are broken or open circuit, inverter power the loads directly via controller, the charge module wont be damaged.



8. Battery protection is added. When there is fault on charge module, disconnect the battery, to prevent the over-charge of battery(high voltage is optional)



9.Perfect protection function: Solar reverse charge protection, Solar reverse connection   protection, Battery reverse connection protection, Battery overcharge protection, Battery over current protection etc ,thus the system has higher reliability.



mppt solar charge controller

Detailed Images

mppt solar charge controllertechnical

         96v mppt solar charge controller technical data sheet

Model96V30A96V50A96V 100A96V 200A
Battery group rated voltage96Vdc96Vdc96Vdc96Vdc
PV open circuit voltage400V400V400V400v
PV Rated current30A50A100A200A
PV Max. power2880Wp4800Wp9600Wp19200Wp
Input PV module road number1124
FunctionAuto stop charge, auto recharge voltage; Protection: connecting contrary, over current, short circuit, over heat etc.
Display modeLCD
Display contentAuto stop charge, auto recharge voltage; Protection: connecting contrary, over current, short circuit, over heat etc.
Floating Charge Voltage110Vdc110Vdc110Vdc110Vdc
Stop charge voltage116Vdc±1%116Vdc±1%116Vdc±1%116Vdc±1%
Recharge voltage108Vdc±1%108Vdc±1%108Vdc±1%108Vdc±1%
Voltage drop between PV and battery1.5V
Max itself power consumption100mA-150mA
Work environment temperature-30-60°C
Relative humidity<90% No condensation
Applicable altitude

<3000m

The rated power should be reduced when it is higher than 2000m

Noise (1m)<40dB
Degree of protection IP20(Indoor)
Cooling methodForced air cooling
*Communication interfaceRS485/USB/GPRS/Ethernet(optional)
*Temperature compensation -4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C(optional)
Product size (mm)  520*430*200 760*600*180 585*585*980
Weight(kg)  15kg 28kg 60kg





mppt solar charge controller

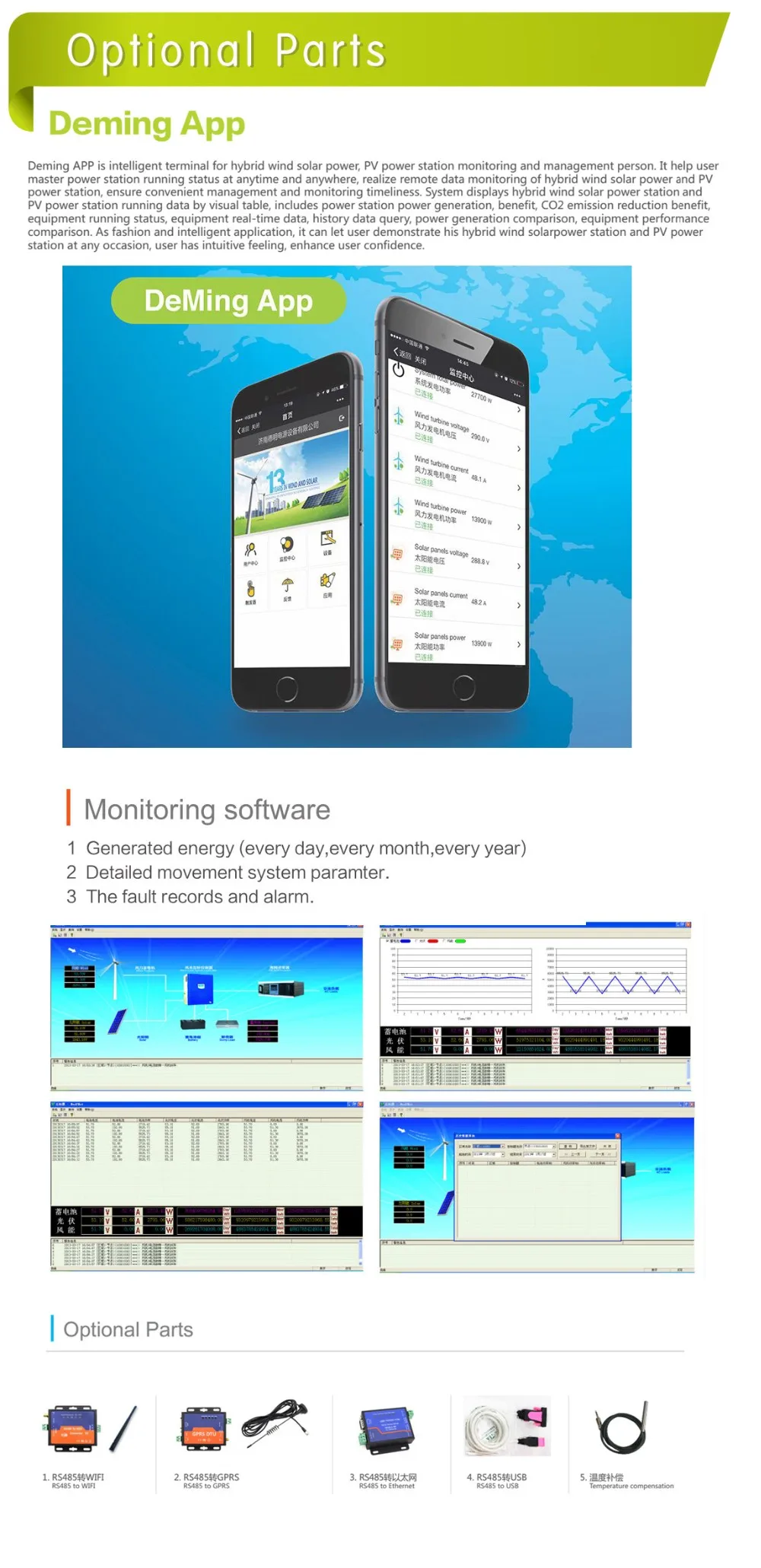

Parts

Parts2017

  Service guarantee

         As our corporate users, you enjoy the following service:

        (1) The machine warranty for free in 2 year;

        (2) Technical support;

        (3) Within 24 hours for respond after receiving notification;

        (4) Cost maintenance forever.

        When you confirm the failure of equipment, please promptly contact us and provide the equipment model and complete description of the problem.



        However, any of the following situation happened, are not included in the warranty:

       (1) Non-permitted by the company, went ahead with repair and damage;

       (2) Install or modify arbitrarily;

       (3) Incorrect operation or use;

       (4) Do not depending on the manual to do cleaning or maintenance;

       (5) Abnormal environment condition exceed the specifications, result in damage;

       (6) The deliberate destruction of man-made;

       (7) Irresistible natural disasters.
