100KW MPPT solar charge controller384V100A

FOB Reference Price:Get Latest Price
US $3,375-4,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
deming
Model Number:
384V 300A
Application:
Solar System Controller
Rated Voltage:
384V
Maximum Current:
300A
Product name:
100KW MPPT solar charge controller384V100A
Charge mode:
MPPT Maximum Power Point Tracking
Certification:
CE RoHS ISO9001
System voltage:
384V
Warranty:
2 Years
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
100KW MPPT solar charge controller384V100A
wooden case
Port
QINGDAO
Lead Time :
10 days

  MPPT solar panel charge controller

Product Overviews

functional


Properties of the MPPT solar charge controller

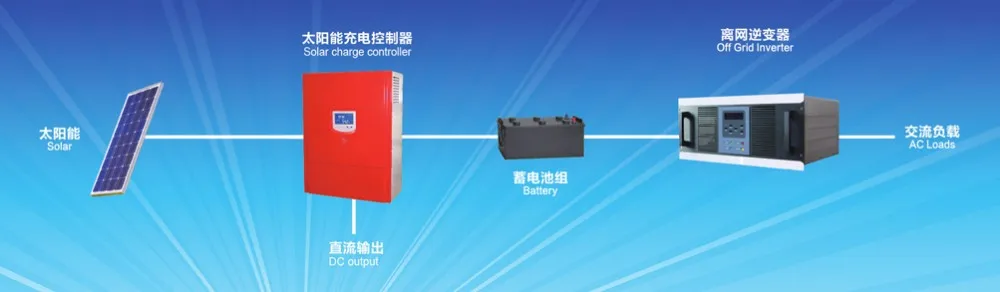

1.  Design for off-grid solar power system.

2.  Applicable to different kinds of batteries.

3.  Adopts MPPT technology (Maximum Power Point Tracking). The advanced tracking algorithm make the solar module operate at ideal voltage which the solar modules can produce the maximum available power.

4.  Modular design with simple structure and easy maintenance.

5.  Automatic power control function.

6.  LCD display: Solar panel current, solar panel voltage, solar panel power, battery group voltage, charge current.

7.  Perfect protection function: Solar reverse charge protection, Solar reverse connection   protection, Battery reverse connection protection, Battery overcharge protection, Battery over current protection etc ,thus the system has higher reliability.


4



DSC_0311-1DSC_0310-1

 technical



Model

384V100A

384V150A

384A200A

384V300A

Battery group rated voltage

384V

384V

384V

384V

PV Rated current

100A

150A

200A

300A

PV open circuit voltage range

750V

750V

750V

750V

PV Max. power

38.4KW

57.6KW

76.8KW

115.2KW

Input PV module road number

2

3

4

6

Function

MPPT charge mode, auto stop charge, auto recharge voltage; Protection: connecting contrary, over current, short circuit, over heat etc.

Display mode

LCD

Display content

solar panel voltage, solar panel current, solar panel power, battery voltage, charge current

MPPT DC voltage rang

320-464V

320-464V

320-464V

320-464V

Floating Charge Voltage (adjustable)

442V

442V

442V

442V

Stop charge voltage

464V±2

464V±2

464V±2

464V±2

Recharge voltage

432V±2

432V±2

432V±2

432V±2

Voltage drop between PV and battery

1.5V

Max itself power consumption

100mA-150mA

Work environment temperature

-30-60°C

Relative humidity

<90% No condensation

Applicable altitude

<3000m

Noise (1m)

<40dB

Degree of protection

IP20(Indoor)

Cooling method

Forced air cooling

*Communication interface (optional)

RS485/USB/GPRS/Ethernet

*Temperature compensation(optional)

-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C

Product size

585*585*980

585*585*980

690*590*1300

690*590*1300

Weight

65

65

120

150

Parts

Parts2015

     Service guarantee

         As our corporate users, you enjoy the following service:

        (1) The machine warranty for free in 2 year;

        (2) Technical support;

        (3) Within 24 hours for respond after receiving notification;

        (4) Cost maintenance forever.

        When you confirm the failure of equipment, please promptly contact us and provide the equipment model and complete description of the problem.



        However, any of the following situation happened, are not included in the warranty:

       (1) Non-permitted by the company, went ahead with repair and damage;

       (2) Install or modify arbitrarily;

       (3) Incorrect operation or use;

       (4) Do not depending on the manual to do cleaning or maintenance;

       (5) Abnormal environment condition exceed the specifications, result in damage;

       (6) The deliberate destruction of man-made;

       (7) Irresistible natural disasters.
