Solar charge controller 480V

FOB Reference Price:Get Latest Price
US $1,500-4,200 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
deming
Model Number:
480V 200A
Application:
Solar System Controller
Rated Voltage:
480V
Maximum Current:
200A
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
wooden case
Port
QINGDAO,shanghai,tianjin,shenzhen,ningbo
Lead Time :
7 days



Product Overviews

Functional description.jpg

Properties of the solar charge controller

1. Design for off-grid solar power system.

2. Applicable to different kinds of batteries.

3. Modular design with simple structure and easy maintenance.

4. Automatic power control function.

5. LCD display: Solar panel current, solar panel voltage, solar panel power, battery group voltage, charge current.

6. MODBUS protocol. The problem that the protocol cant be compatible with other devices is solved. It is convenient to do secondary development.

7. Add the protection function of charge module. When batteries are broken or open circuit, inverter power the loads directly via controller, the charge module wont be damaged.

8. Battery protection is added. When there is fault on charge module, disconnect the battery, to prevent the over-charge of battery(high voltage is optional)

9.Perfect protection function: Solar reverse charge protection, Solar reverse connection   protection, Battery reverse connection protection, Battery overcharge protection, Battery over current protection etc ,thus the system has higher reliability.

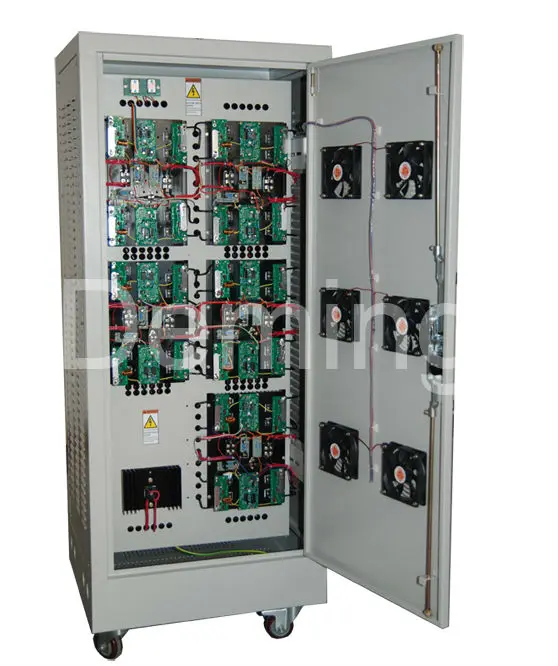

Product photo



DSC_0311-1

DSC_0310-1

 Technical Parameters

Technical parameters for 480V solar charge controller

Model

480V100A

480V150A

480A200A

480V250A

Battery group rated voltage

480V

480V

480V

480V

PV Max. input (open circuit) voltage

880V

880V

880V

880V

PV Rated current

100A

50A

60A

80A

PV Max. power

48KW

72KW

96KW

120KW

Input PV module road number

2

3

4

5

Function

Auto stop charge, auto recharge voltage; Protection: connecting contrary, over current, short circuit, over heat etc.

Display mode

LCD

Display content

solar panel voltage, solar panel current, solar panel power, battery voltage, charge current

Floating Charge Voltage (adjustable)

552V

552V

552V

552V

Stop charge voltage

580V±2

580V±2

580V±2

580V±2

Recharge voltage

540V±2

540V±2

540V±2

540V±2

Voltage drop between PV and battery

1.5V

Max itself power consumption

100mA-150mA

Work environment temperature

-30-60°C

Relative humidity

<90% No condensation

Applicable altitude

<3000m

Noise (1m)

<40dB

Degree of protection

IP20(Indoor)

Cooling method

Forced air cooling

*Communication interface (optional)

RS485/USB/GPRS/Ethernet

*Temperature compensation(optional)

-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C

Product size

585*585*980

585*585*980

690*590*1300

690*590*1300

Weight

65

65

120

120

*Above parameter only for reference. Could be custom made to user specifications.



Parts

Optional Parts

  Service guarantee

         As our corporate users, you enjoy the following service:

        (1) The machine warranty for free in 2 year;

        (2) Technical support;

        (3) Within 24 hours for respond after receiving notification;

        (4) Cost maintenance forever.

        When you confirm the failure of equipment, please promptly contact us and provide the equipment model and complete description of the problem.



        However, any of the following situation happened, are not included in the warranty:

       (1) Non-permitted by the company, went ahead with repair and damage;

       (2) Install or modify arbitrarily;

       (3) Incorrect operation or use;

       (4) Do not depending on the manual to do cleaning or maintenance;

       (5) Abnormal environment condition exceed the specifications, result in damage;

       (6) The deliberate destruction of man-made;

       (7) Irresistible natural disasters.
