PWM wind solar controller 5KW

FOB Reference Price:Get Latest Price
US $500-700 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
deming
Model Number:
FKJ-B(PWM)
Application:
Wind Controller
Rated Voltage:
48V
Maximum Current:
160A
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
WOODEN CASE
Port
QINGDAO
Lead Time :
7days
Product Overviews



functional

Off-Grid PWM Wind Turbine (Wind generator) Controller

FKJ-B model off grid PWM wind turbine controller Product Characteristics

1. The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T19115.1-2003 national standard also with users’ technical requirements.

2. Big LCD display.The images tell working state visually.Various data show: real-time wind turbine voltage,current,power;solar panel voltage,current,power;battery group voltage, charge current.

3. Two sets of control systems:PWM constant voltage system and three-phase dump load system.

4. When the strong or super-strong wind conditions PWM control to ensure battery charged by the wind turbine with constant voltage and current.

5. When the battery disconnect or damage, the three-phase dump load will start automatically to avoid the wind turbine idling and runaway accident.

6. The protection function of battery: polarity reverse protection, disconnection and damage protection.

7. Over-charging protection of the battery: When the battery is full, the three-phase dump load will work, the wind turbine will brake and stop charge the battery.

8. Auto recharging of battery: When the battery voltage reduces to 108% of the rated voltage,it stops three-phase dump load to recharge battery automatically.

9. The controller is equipped with manual brake switch. To using this switch, the wind turbine will carry out three-phase dump load forcibly.

10. The inside of the controller is equipped with surge arrester. Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system. On the other way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.

* Solar panel control system is optional.Based on customers' requirement.

* Disel generator port is optional.Control the generator start and stop automatically

* Adopt Modbus Communication protocol. Convenient to carry out the secondary development.

* Adjusting the technical specification via RS485 is available.Convenient to adjust the different wind turbines for professional customers.

* Support WIFI and GPRS.Customers can monitor the real-time working state of the on grid wind power system via PC and mobile and query history working sate.Both Android and OS are compatible in Mobile.

* For the different wind turbine, the controller can be equipped with mechanical yawing, Rotate tail control, furled empennage, mechanical brake,hydraulic brake, electromagnetism brake and other brake functions.

Detailed Images



dump load(off grid& on grid)

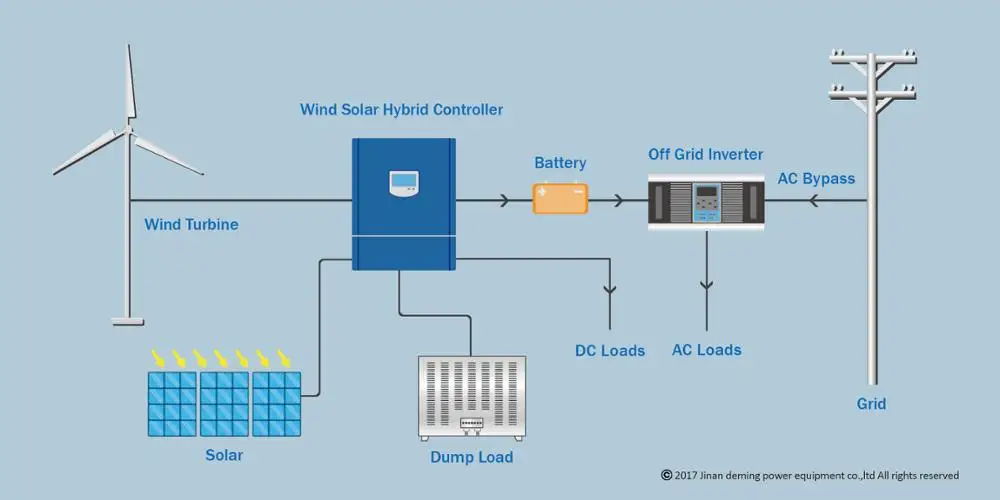

Installation diagram

1


technical



Technical Parameters of the FKJ-B (PWM) Off - Grid Wind Solar Controller 5KW



Type

5KW-48Vdc

5KW-120Vdc

5KW-240Vdc

Wind turbine rated power

5KW

5KW

5KW

Wind turbine max. power

10KW

10KW

10KW

Solar panel power

1.5KW

1.5KW

1.5KW

Battery

48Vdc

120Vdc

240Vdc

Function

Rectifier,charge, control

Display mode

LCD

Display content

Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current

PWM constant pressure voltage

>56Vdc

>135Vdc

>280 Vdc

3-phase load voltage of the wind turbine

58±1Vdc

145±2Vdc

290±5Vdc

Wind turbine recovery charging voltage

54±1Vdc

135±2Vdc

280±5Vdc

Solar controller stop charging voltage

58±1Vdc

145±2Vdc

290±5Vdc

Solar restore charge voltage

54±1Vdc

135±2Vdc

280±5Vdc

Low-voltage of the battery

40±1Vdc

100±2Vdc

200±5Vdc

Self-provided connecting wire of the battery

>20mm²

>10mm²

>6mm²

PWM fuse

125A

63A

40A

Solar fuse

32A

16A

10A

Charging fuse

160A

63A

50A

Work environment temperature

-30-60°C

Relative humidity

<90% No condensation

Noise (1m)

<40dB

Degree of protection

IP20(Indoor)

Cooling method

Forced air cooling

*Communication interface (optional)

RS485/USB/GPRS/Ethernet

*Temperature compensation(optional)

-4mv/°C/2V,-35°C~+80°C,

Accuracy:±1°C

Size of the controller

500*440*290 mm

Weight of the controller

21 Kg

Size of the load

660*510*450 mm

Weight of the load

31 Kg



*Above parameter only for reference



1. Could be custom made to user specifications. 2, Could have solar power control subject to user demand.



Parts

Parts2017s

     Service guarantee

         As our corporate users, you enjoy the following service:

        (1) The machine warranty for free in 2 year;

        (2) Technical support;

        (3) Within 24 hours for respond after receiving notification;

        (4) Cost maintenance forever.

        When you confirm the failure of equipment, please promptly contact us and provide the equipment model and complete description of the problem.



        However, any of the following situation happened, are not included in the warranty:

       (1) Non-permitted by the company, went ahead with repair and damage;

       (2) Install or modify arbitrarily;

       (3) Incorrect operation or use;

       (4) Do not depending on the manual to do cleaning or maintenance;

       (5) Abnormal environment condition exceed the specifications, result in damage;

       (6) The deliberate destruction of man-made;

       (7) Irresistible natural disasters.
