MPPT Solar Charge Controller 480V40A/50A/60A for 10-30KW Off Grid Solar System

FOB Reference Price:Get Latest Price
US $1,000-2,000 / Pieces | 1 Piece/Pieces (Min. Order)
Rated Voltage:
480
Maximum Current:
60A
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Deming
Model Number:
DMSC-480V60A
Application:
Charger Controller, Voltage Controller, Solar System Controller, Solar Working Station
Product name:
MPPT Solar Charge Controller 480V40A/50A/60A
Battery group/bank voltage:
480Vdc
PV rated current:
60A
Max. PV open circuit votlage:
880Vdc
Max. PV power:
28.8KW
Optimum PV Array Vmp:
696-720Vdc, a little more or less is okay
Input PV module road number:
1
Floating Charge Voltage (adjustable):
552Vdc
Stop charge voltage:
580V±1%
*Communication interface (optional):
RS485/USB/GPRS/Ethernet
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week mppt charger controller 480v
Packaging & Delivery
Packaging Details
780*610*310mm/wooden case
35kg/wooden case
MPPT Solar Charge Controller 480V40A/50A/60A for 10-30KW Off Grid Solar System
Port
qingdao, tianjin, shanghai,shenzhen,guangzhou, ningbo
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(day) 15 To be negotiated

MPPT Solar Charge Controller 480V40A/50A/60A for 10-30KW Off Grid Solar System

 MPPT charge controller 480v

Product Overviews



Properties of the solar charge controller

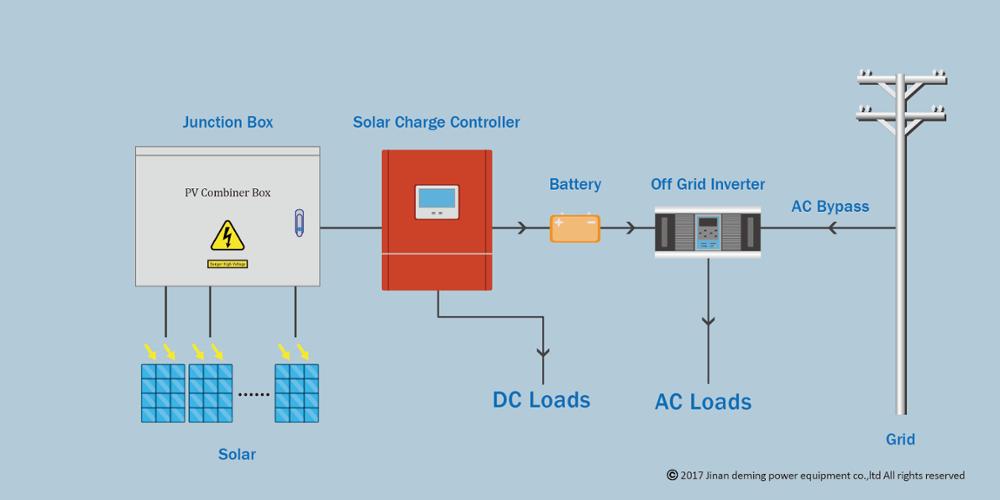

1. Design for off-grid solar power system.

2. Applicable to different kinds of batteries.

3. Modular design with simple structure and easy maintenance.

4. Automatic power control function.

5. LCD display: Solar panel current, solar panel voltage, solar panel power, battery group voltage, charge         current.

6. MODBUS protocol. The problem that the protocol cant be compatible with other devices is solved. It is convenient to do secondary development.

7. Add the protection function of charge module. When batteries are broken or open circuit, inverter power the loads directly via controller, the charge module wont be damaged.

8. Battery protection is added. When there is fault on charge module, disconnect the battery, to prevent the over-charge of battery(high voltage is optional)

9.Perfect protection function: Solar reverse charge protection, Solar reverse connection   protection, Battery reverse connection protection, Battery overcharge protection, Battery over current protection etc ,thus the system has higher reliability.

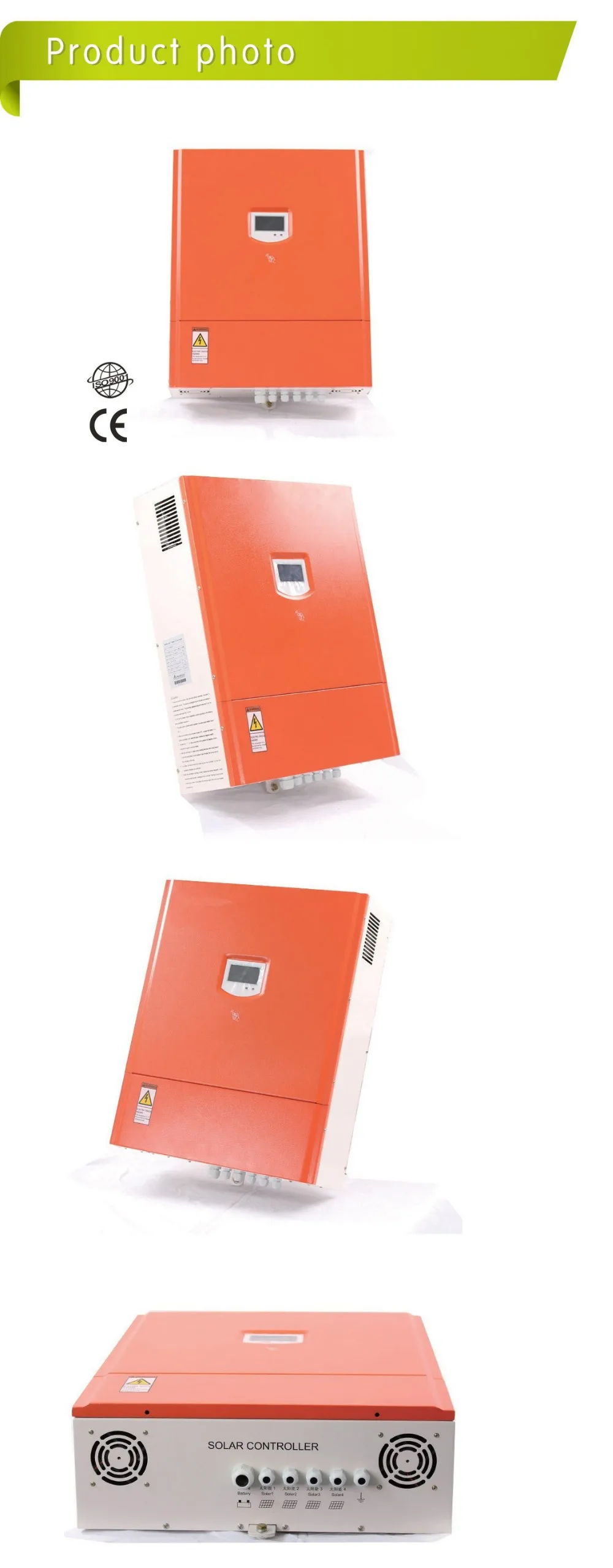

Detailed Images

MPPT charge controller 480v

Technical parameters of the MPPT solar charge  controller





Model

480V30A

480V50A

480A60A

480V80A

Battery group rated voltage

480V

480V

480V

480V

PV Rated current

30A

50A

60A

80A

Max. DC Voltage from PV

880V

880V

880V

880V

Maximum Power from PV

14.4KW

24KW

28.8KW

38.4KW

Optimum PV Array Vmp

696-720Vdc, more or less is okay

MPPT Range

400V-580V

Input PV module road number

1

1

1/2

2

Function

Auto stop charge, auto recharge voltage; Protection: connecting contrary, over current, short circuit, over heat etc.

Display mode

LCD

Display content

solar panel voltage, solar panel current, solar panel power, battery voltage, charge current

Floating Charge Voltage (adjustable)

552V

552V

552V

552V

Stop charge voltage

580V±1%

580V±1%

580V±1%

580V±1%

Recharge voltage

540V±1%

540V±1%

540V±1%

540V±1%

Voltage drop between PV and battery

1.5V

Max itself power consumption

100mA-150mA

Work environment temperature

-30-60°C

Relative humidity

<90% No condensation

Applicable altitude

<3000m

Noise (1m)

<40dB

Degree of protection

IP20(Indoor)

Cooling method

Forced air cooling

*Communication interface (optional)

RS485/USB/GPRS/Ethernet

*Temperature compensation(optional)

-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C

Product size(mm)

520*430*200

760*600*180

585*585*980

Weight(kg)

10

28

65



  MPPT charge controller 480v



Buyer Feedback



accessories+Warranty



        Service guarantee

         As our corporate users, you enjoy the following service:
        (1) The machine warranty for free in 1 year;
        (2) Technical support;
        (3) Within 24 hours for respond after receiving notification;
        (4) Cost maintenance forever.

        When you confirm the failure of equipment, please promptly contact us and provide the                    equipment model and complete description of the problem.



        However, any of the following situation happened, are not included in the warranty:
       (1) Non-permitted by the company, went ahead with repair and damage;
       (2) Install or modify arbitrarily;
       (3) Incorrect operation or use;
       (4) Do not depending on the manual to do cleaning or maintenance;
       (5) Abnormal environment condition exceed the specifications, result in damage;
       (6) The deliberate destruction of man-made;
       (7) Irresistible natural disasters.
