10kw off grid solar panel inverter

FOB Reference Price:Get Latest Price
US $1,390-2,200 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Deming
Model Number:
NBD10K
Output Power:
1 - 200KW
Output Type:
Single
Size:
560*780*950mm
Weight:
140KG
Input Voltage:
48V/96V/110V/220V
Output Voltage:
110V/120V/220V/230V
Type:
DC/AC Inverters
Output Frequency:
50HZ/60HZ
Output Current:
91A
Product name:
10kw off grid solar panel inverter
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
wooden case
Port
qingdao
Lead Time :
Shipped in 10 days after payment

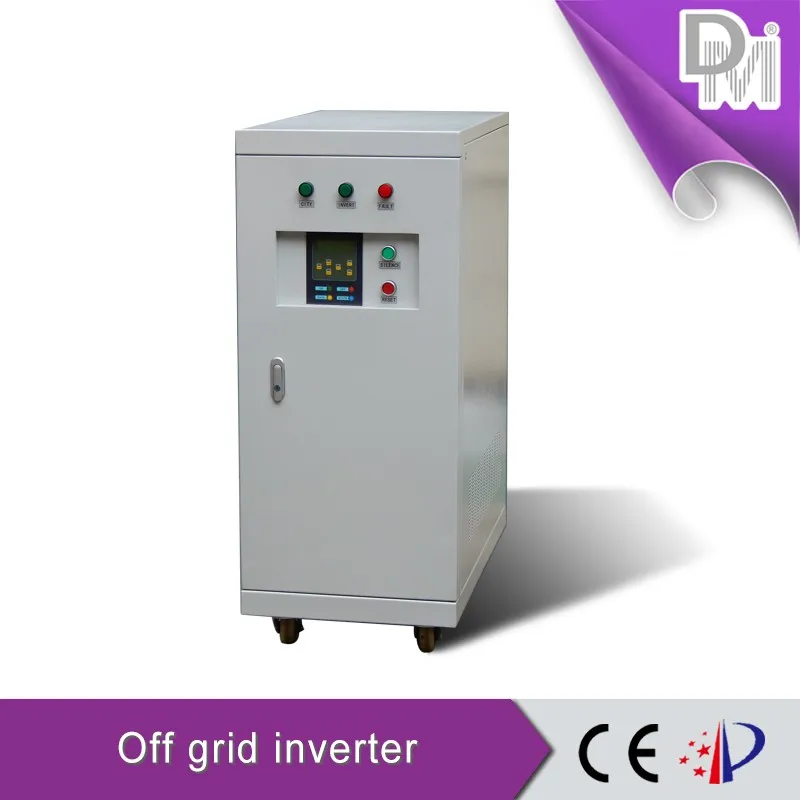

Product photo

11111

15KW

Technical Parameters

Technical parameters of the inverter 10KVA DC48V



10KVA off grid single phase inverter technical parameters



Type

ND48-10KD

ND96-10KD

ND110-10KD

ND220-10KD

DC input

Input rated voltage

48 VDC

96 VDC

110 VDC

220 VDC

Input rated current

208 A

104 A

91 A

45.5 A

Input DC voltage range

40-60 VDC

75-135 VDC

80-145 VDC

180-300 VDC



AC input

Allow input voltage range

110 VAC / 120 VAC / 220 VAC / 240 VAC ± 15% VAC

Input rated current

91A / 104A / 45.5 A / 42A

Bypass transfer time

4 ms



AC output

Rated capacity

10KVA

Output rated power

8KW

Output rated voltage and frequency

110 VAC / 120 VAC / 220 VAC / 240 VAC,50Hz / 60Hz

Output rated current

91A / 104A / 45.5 A /42A

Output voltage accuracy

110 VAC / 120 VAC / 220 VAC / 240 VAC ± 2%

Output frequency accuracy

50Hz / 60Hz ± 0.05%

Waveform distortion (THD). (Linear load)

≤3%

Dynamic response time (Load 0←→100%)

5%

Power factor (PF)

0.8

Overload capacity

120%,3 minutes,150%,10 second

Crest factor (CF)

3:1

Inverter efficiency

90%

Working Environment

Dielectric strength

1500VAC,1minute

Noise (1m)

≤50dB

Ambient temperature

-10~+50℃

Humidity

0~90%, No condensation

Altitude

≤5000 m

Production function

Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection

Size



Weight
